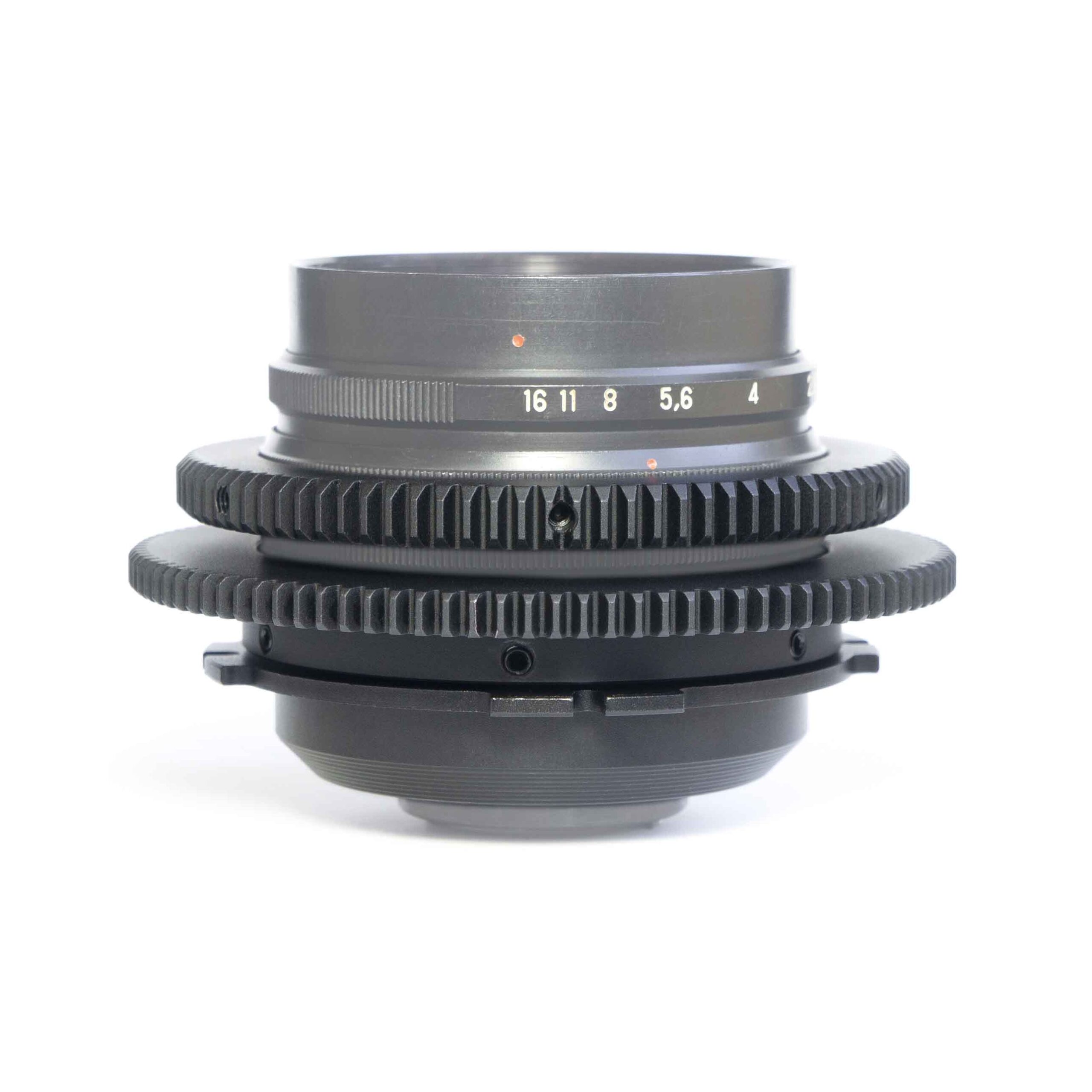

PL Kit for Mir-1 | Gears + PL adapter

Installation note:
To install the focus gear, the original focus ring must be removed from the lens. A screwdriver for removal is included. Installation instructions available upon request.

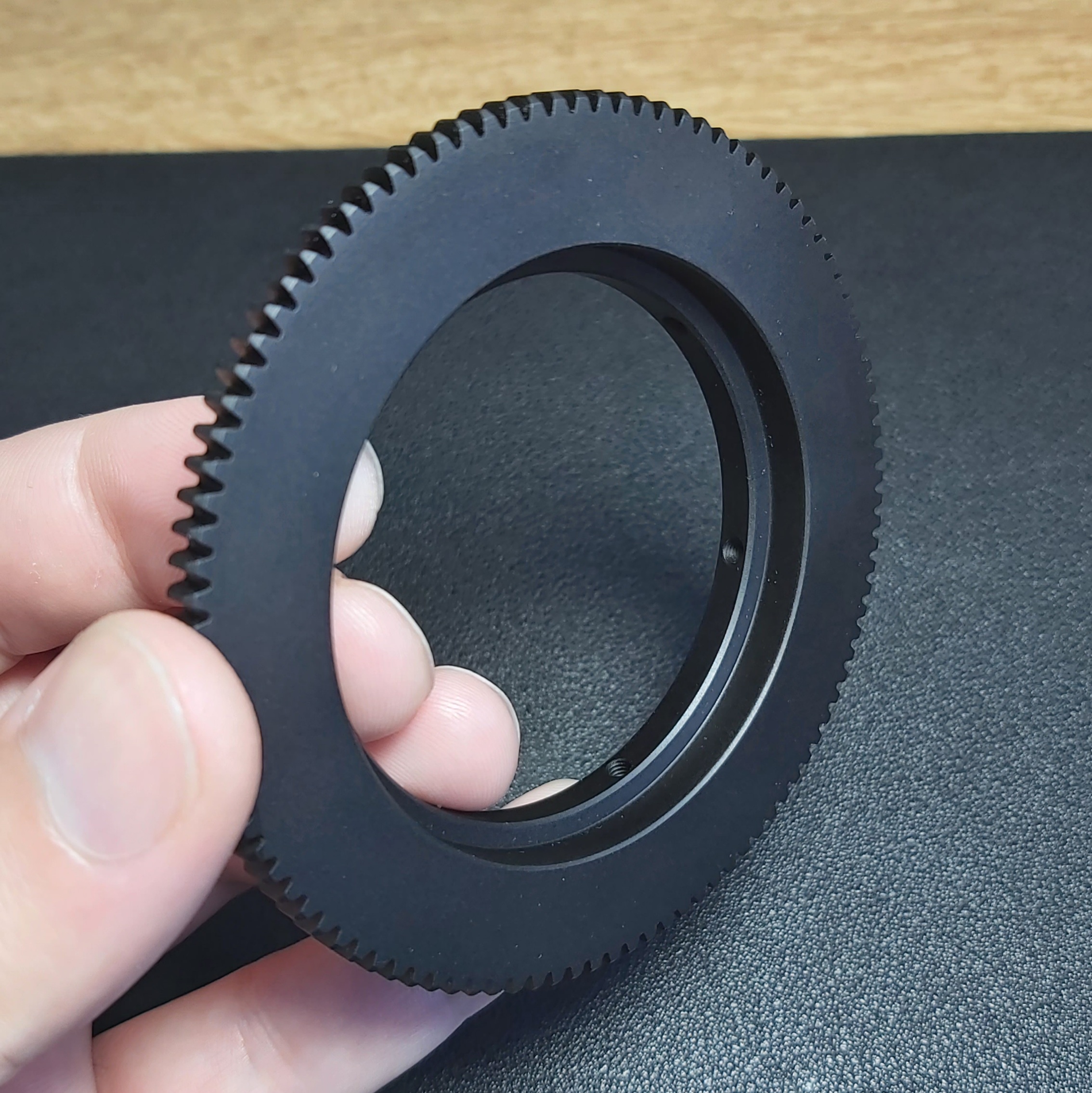

Seamless metal follow focus gears for the focus ring and aperture ring

Condition: New

Tooth module: 0.8 (compatible with any standard follow focus system)

Material: Aluminum

Color: Black

Coating: Anodized

Inner diameter: Focus – 52.6mm, Aperture – 57mm.

Outer diameter: Focus – 83mm, Aperture – 74mm.

Thickness: Focus – 10mm, Aperture – 6mm.

Compatibility: Mir-1, Mir-1B, Mir-1Ш

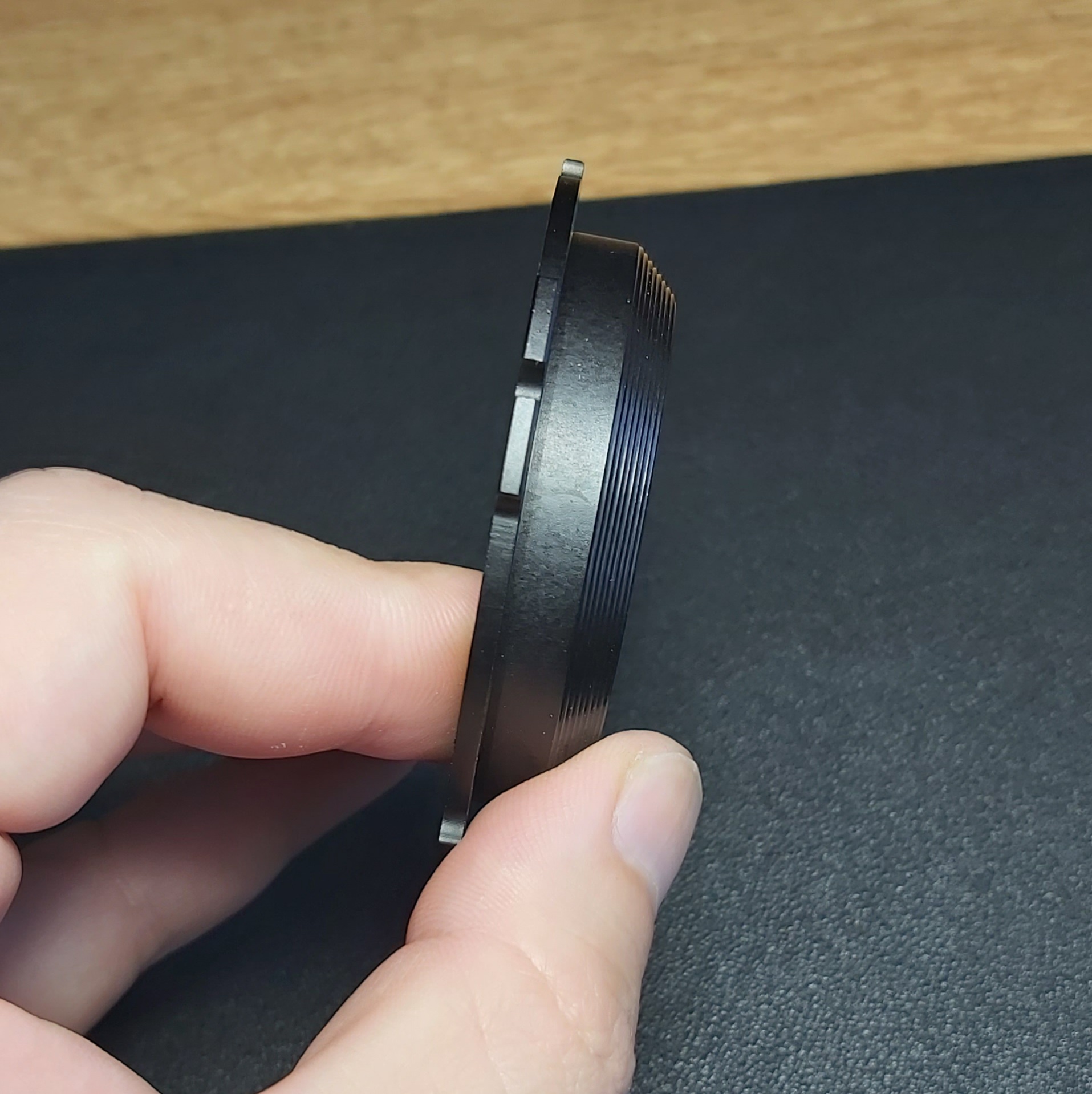

M42 – PL adapter

Condition: New

Material: Aluminum

Color: Black

Coating: Anodized

Mount thread: M42x1

The package contains: gear(s), mounting screws, hex key, m42-PL adapter, rear cap.

📐 Compatibility note – vintage tolerances
Manufacturing tolerances in vintage optics mean that barrel diameters can vary slightly between production years or factories. This gear is made to fit the most common specifications for this model.

To ensure a perfect fit, please confirm your lens diameter matches the gear’s inner diameter. If your lens measures differently, or if you prefer a guaranteed match, consider my custom gear service — simply send your measurements for a bespoke fit.
