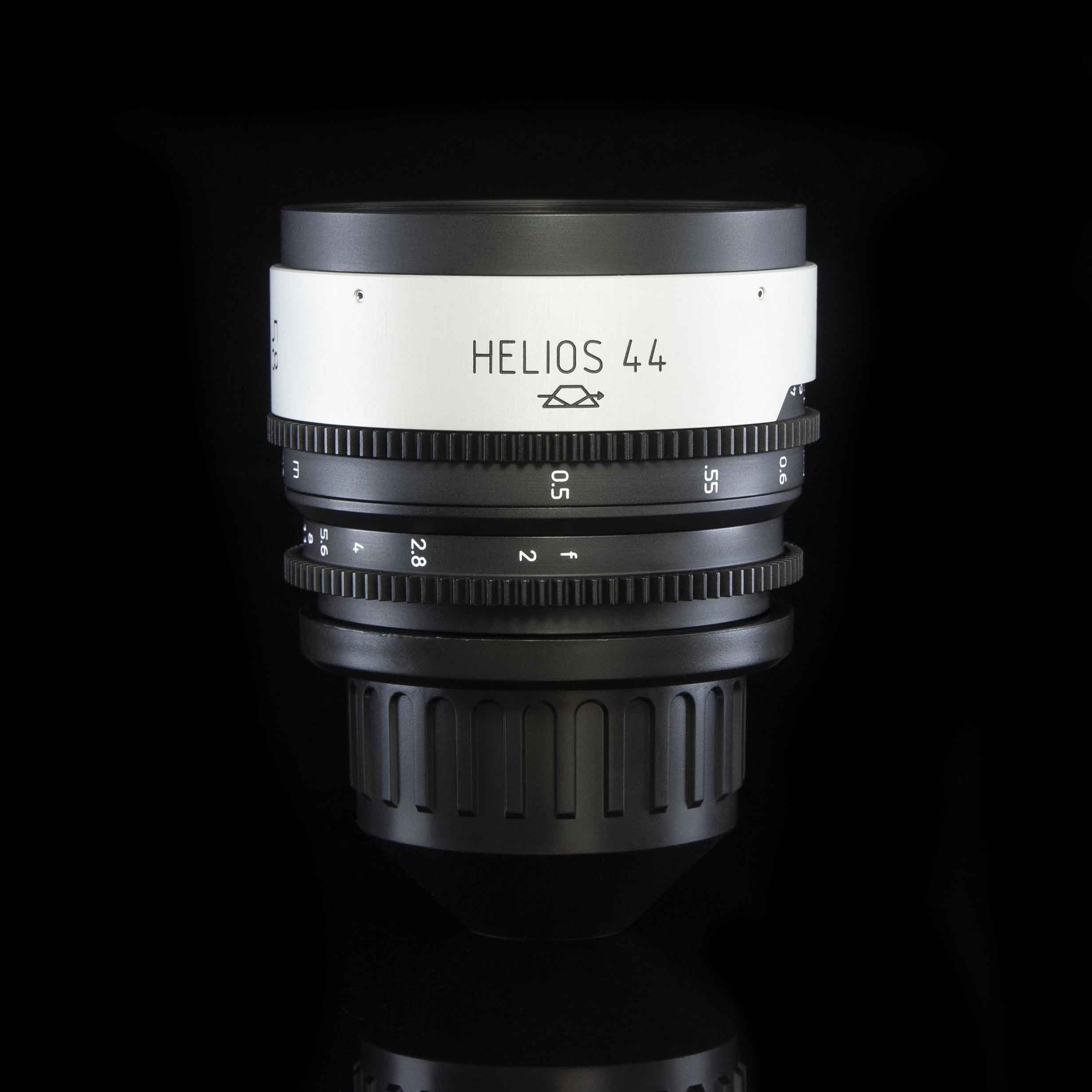

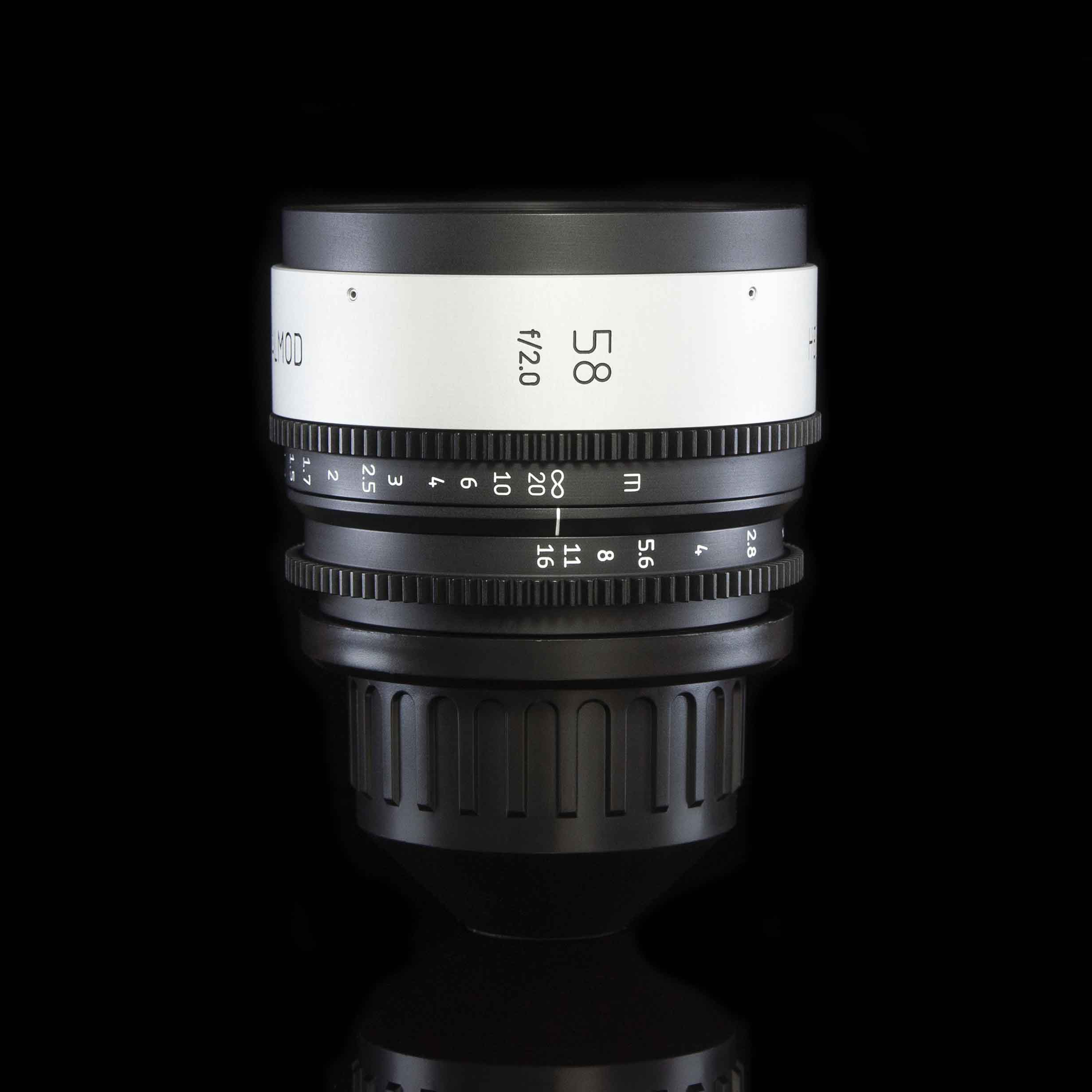

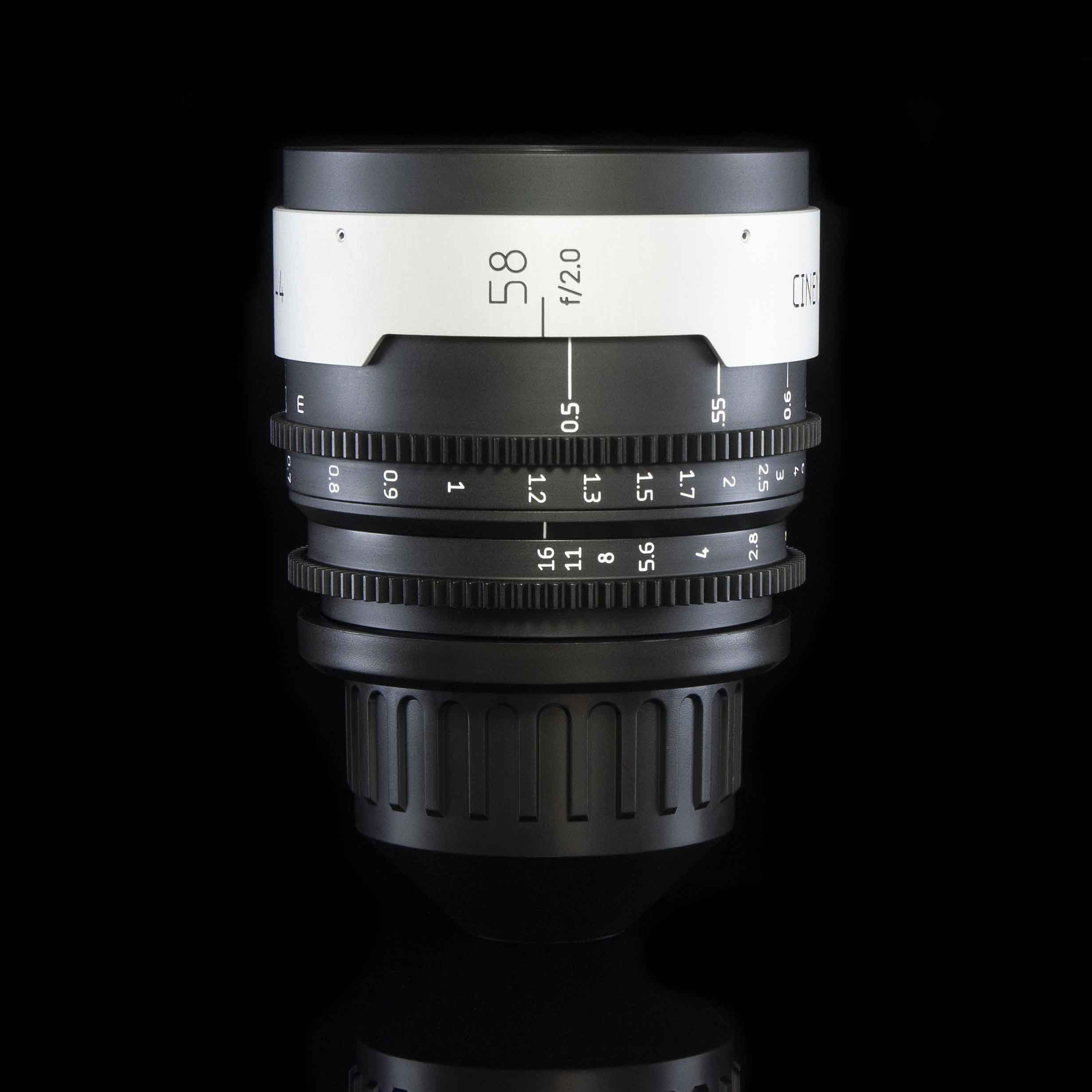

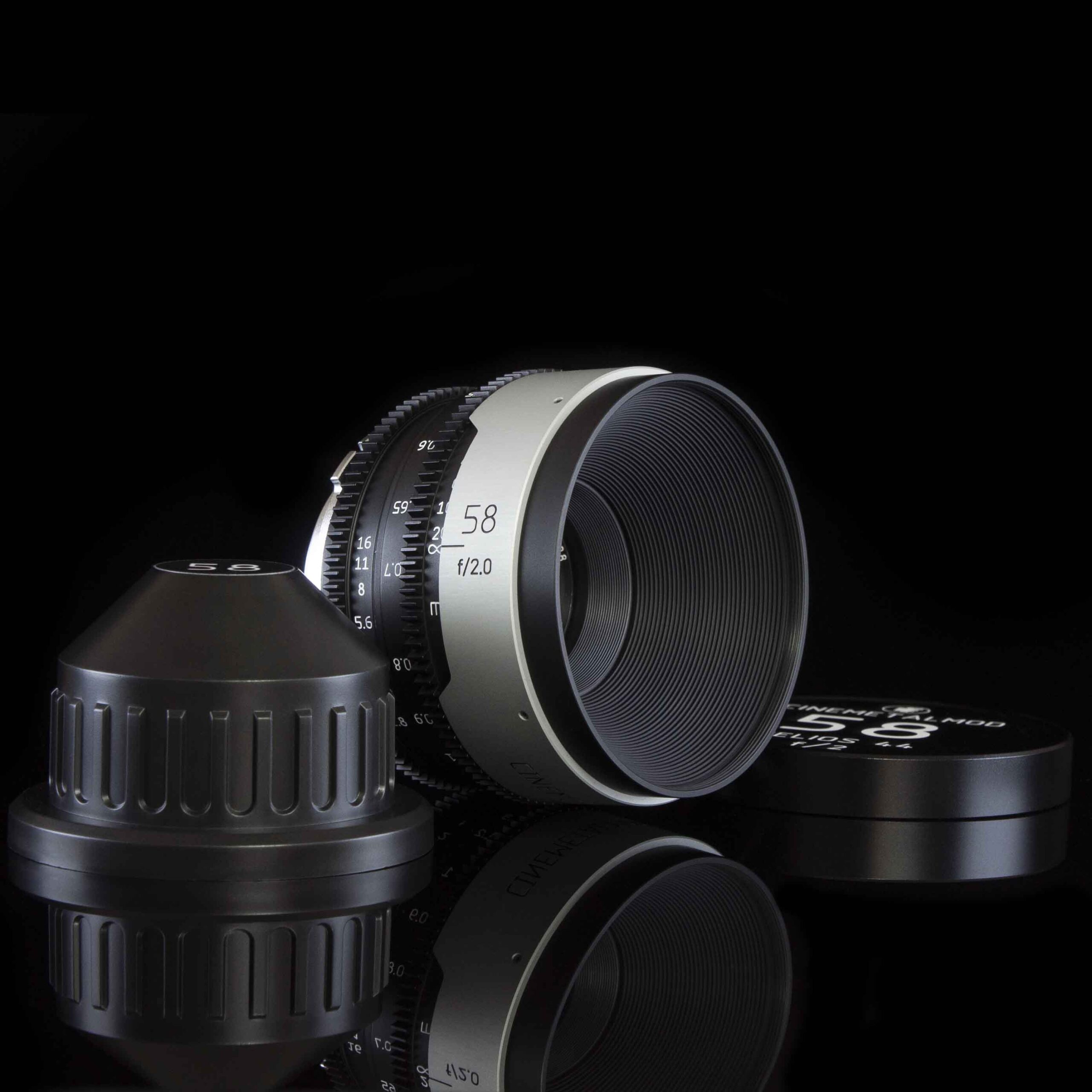

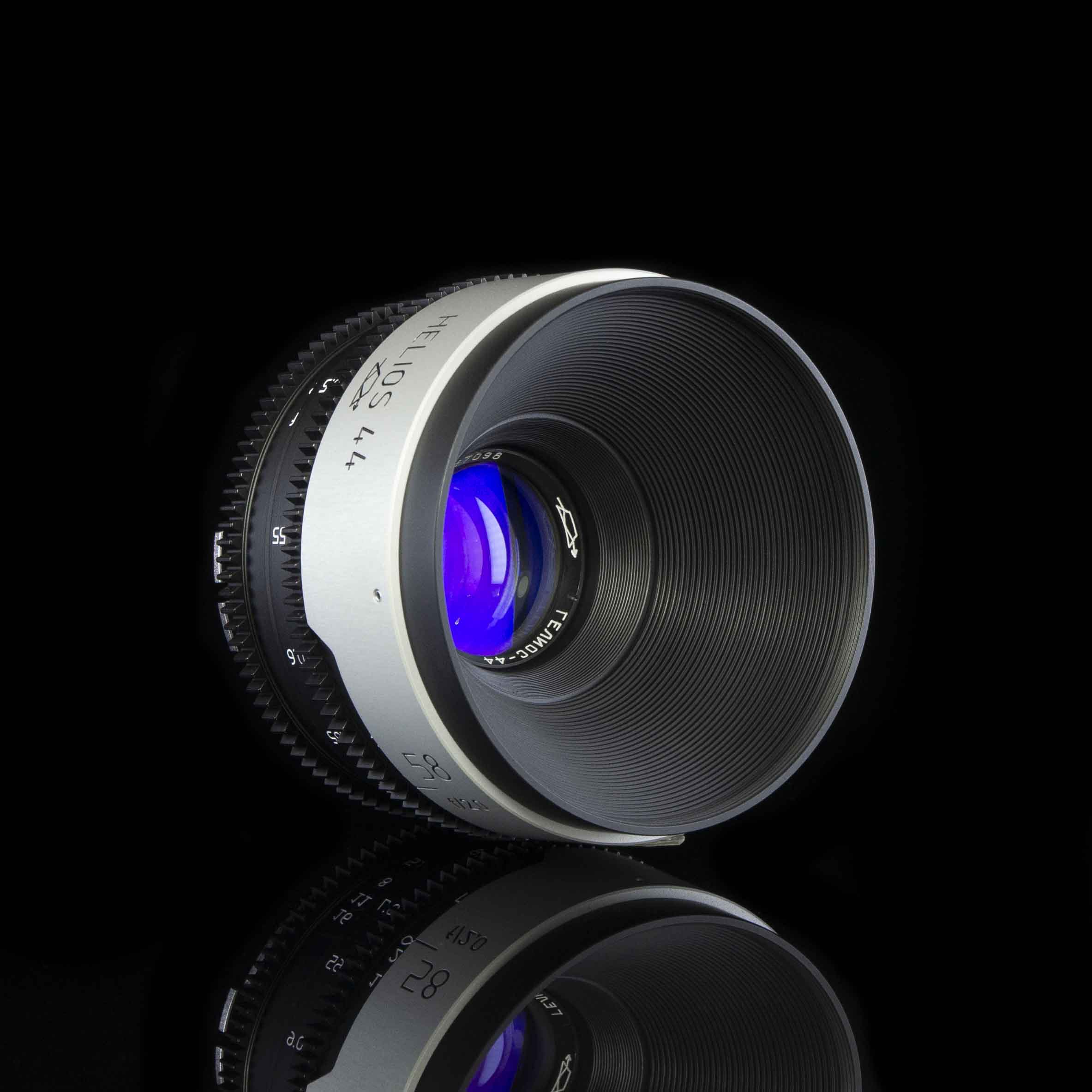

KMZ Helios 44 | 13-blade version | READY TO SHIP

$970.00 - Free Shipping

Price listed is for rehousing with my donor lens.

Cost for rehousing your Helios 44: $800

Full service description here.

In stock

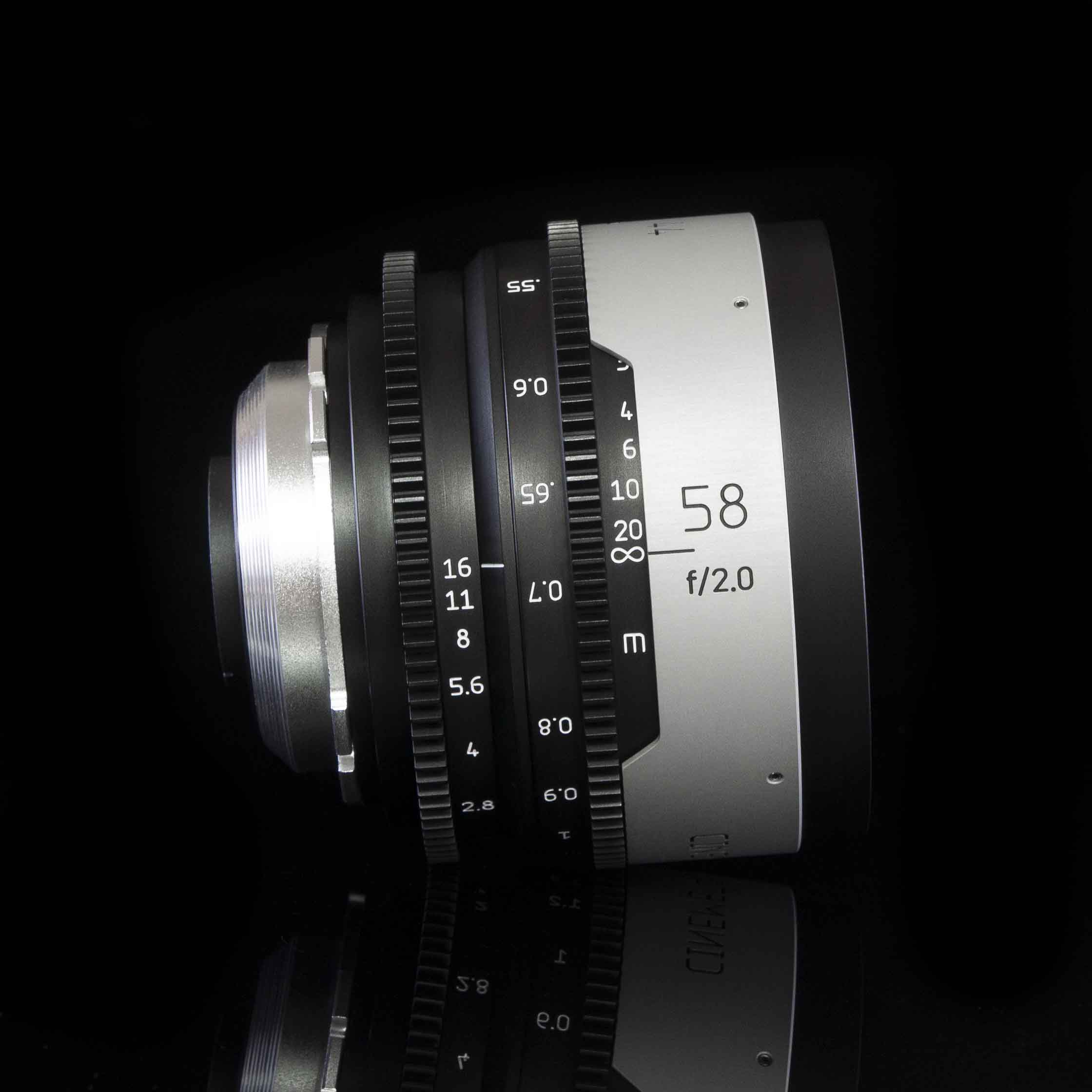

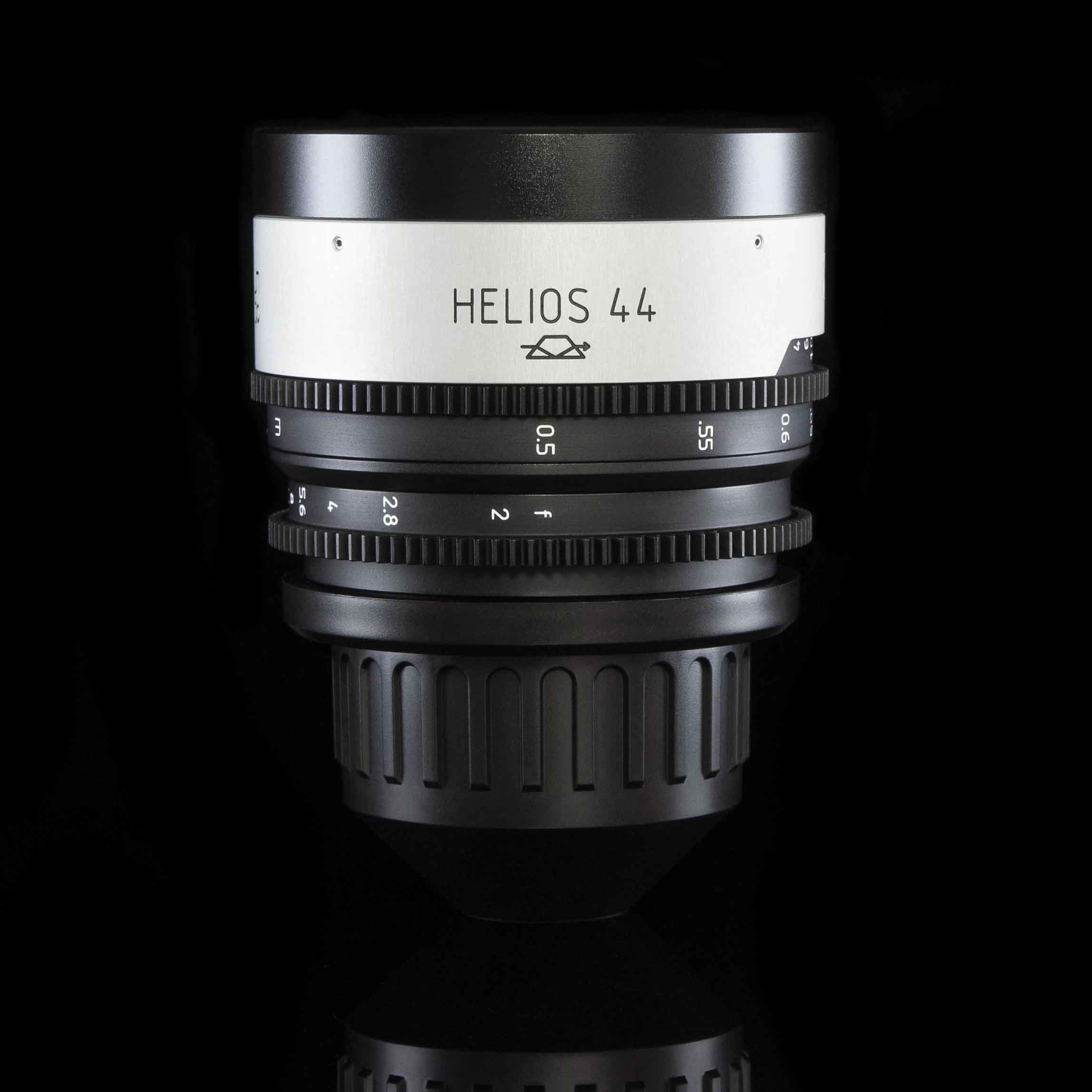

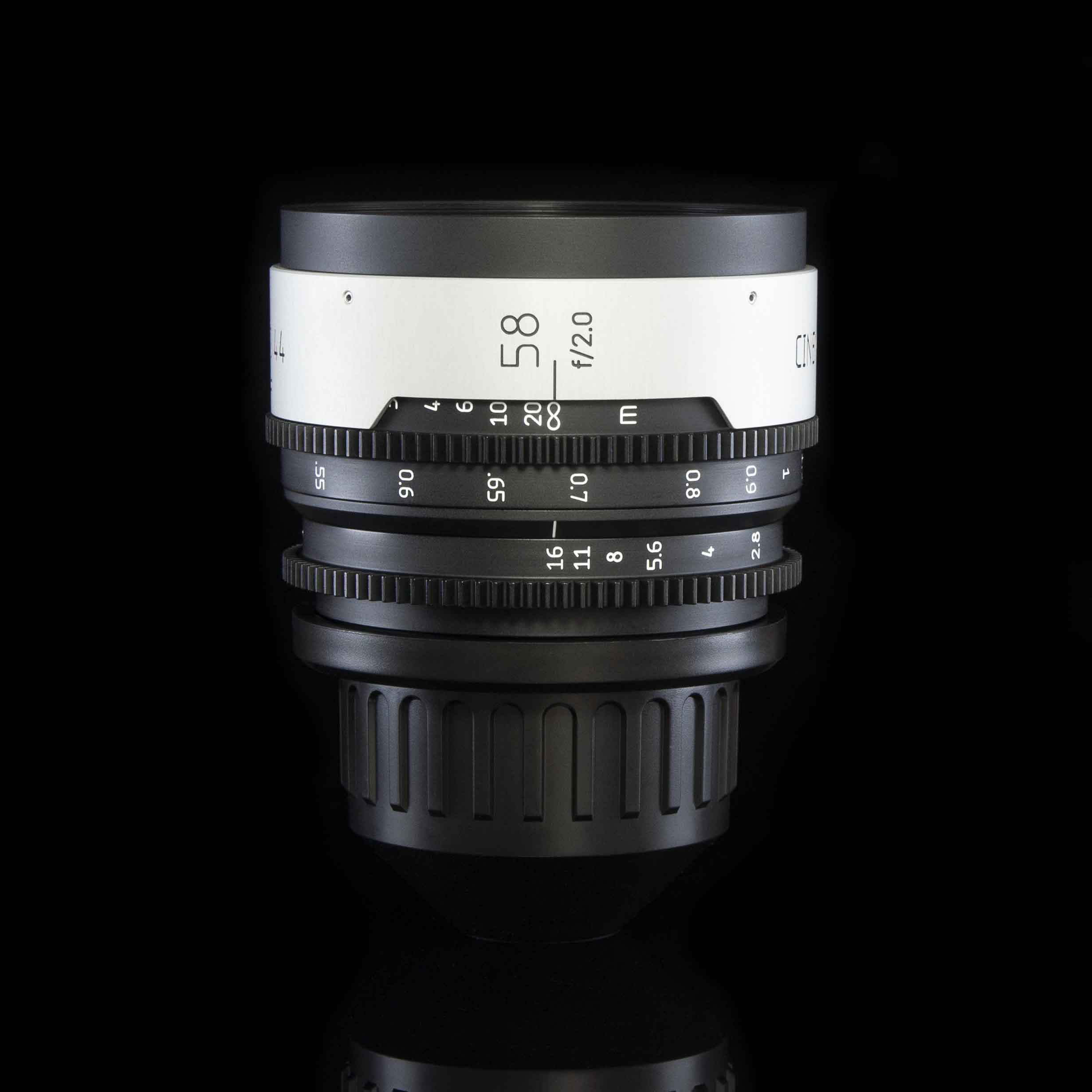

Rehoused Helios 44. Based on the lens’s original factory mechanics.

In addition to the new external body, the lens has undergone a structural redesign. The focus ring has been repositioned forward, the aperture ring rearward — a layout more common for cinema lenses.



Condition

Mechanics:

  • All movements smooth

  • Mechanisms cleaned and re-lubricated

  • Glass and aperture blades cleaned (dust and oil residue removed)

  • Aperture click stops removed (de-clicked)

  • Infinity focus calibrated

Optics:

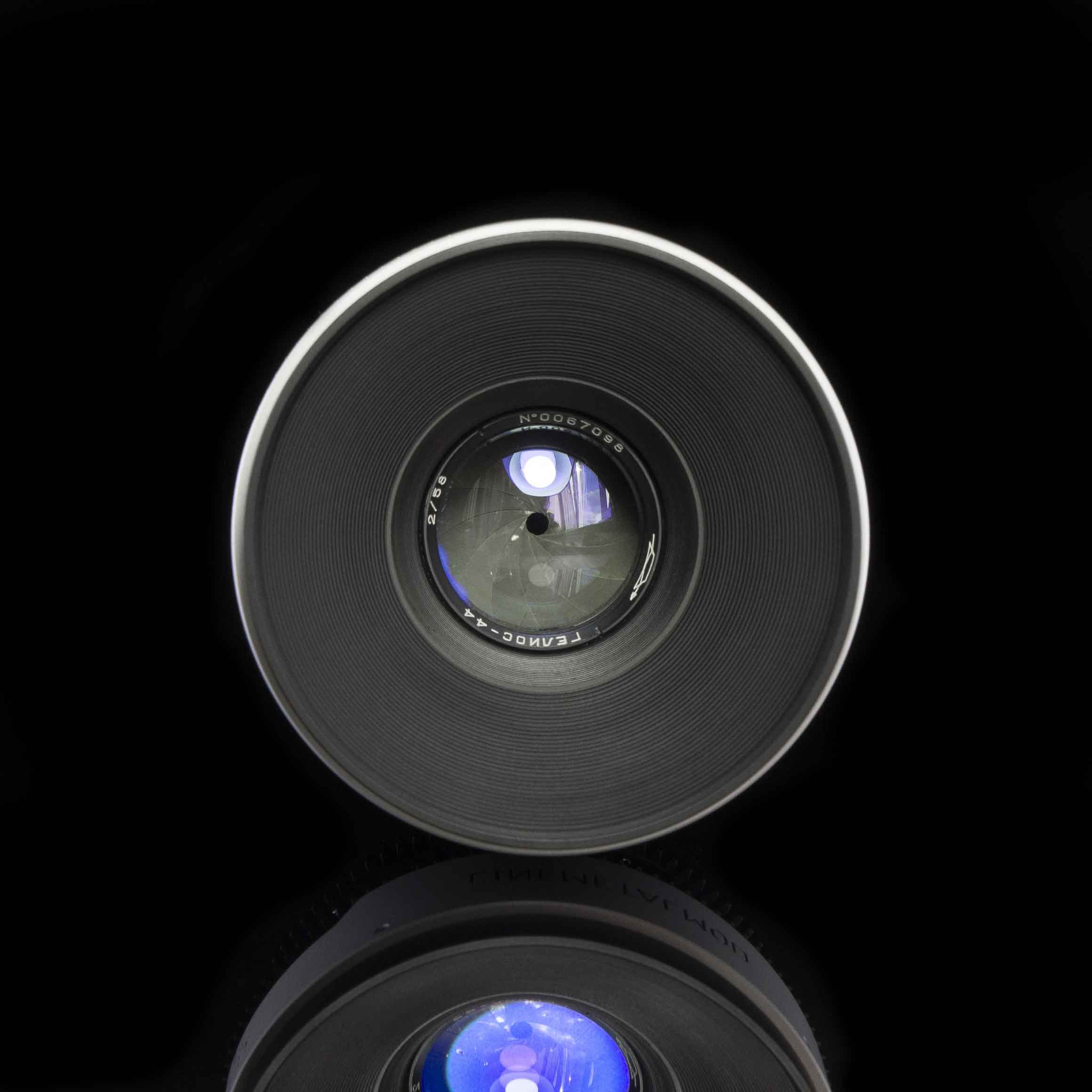

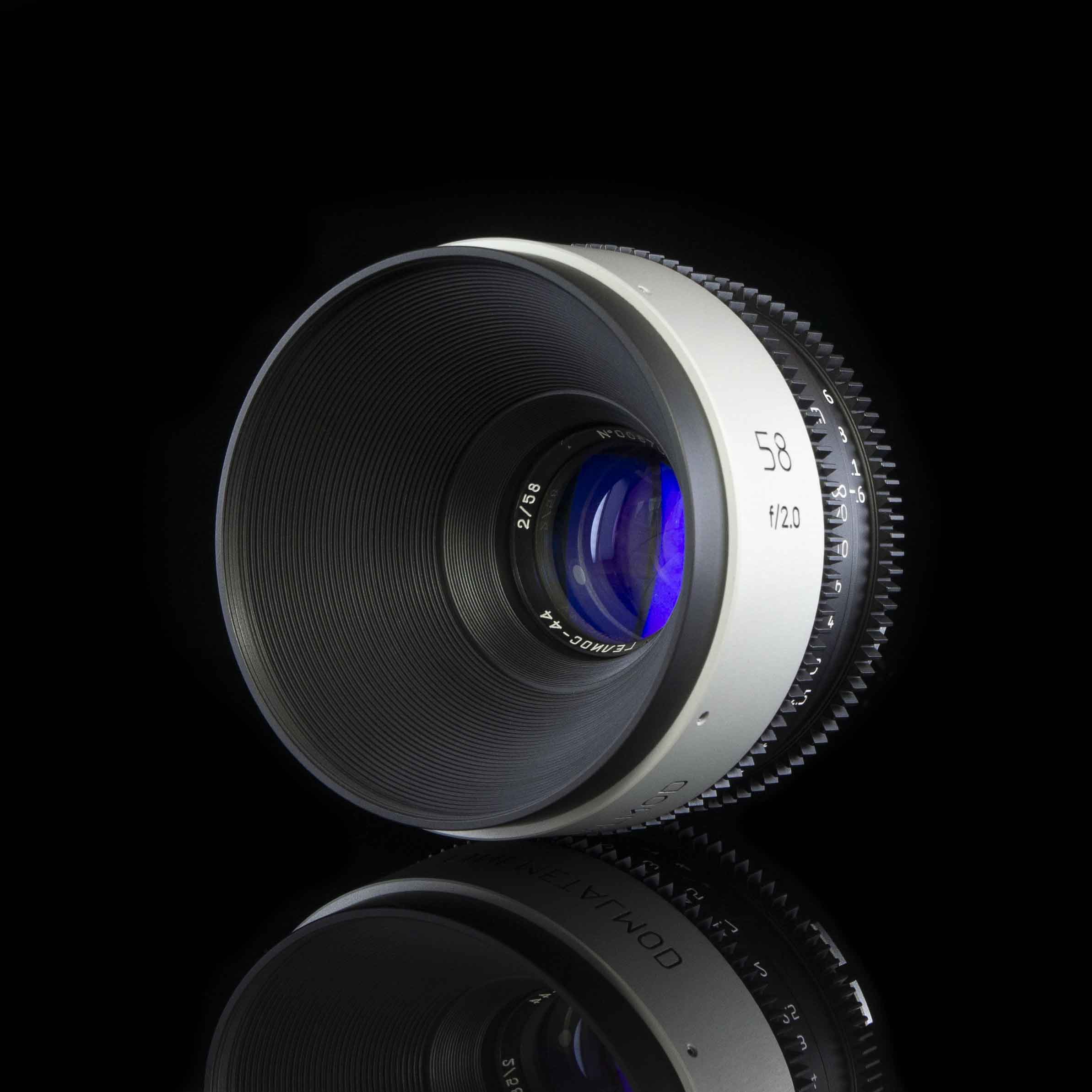

Overall condition good. Minor cleaning marks present — typical for glass of this era. A few very small coating imperfections (“comets”) and tiny air bubbles inside the glass elements.

These characteristics are common for lenses of this age and do not affect image quality in normal use.



Specifications

Parameter Value
Material Aluminum
Finish Anodized
Filter thread 77mm
Front diameter 80mm
Weight ~550g
Gear module 0.8 Mod

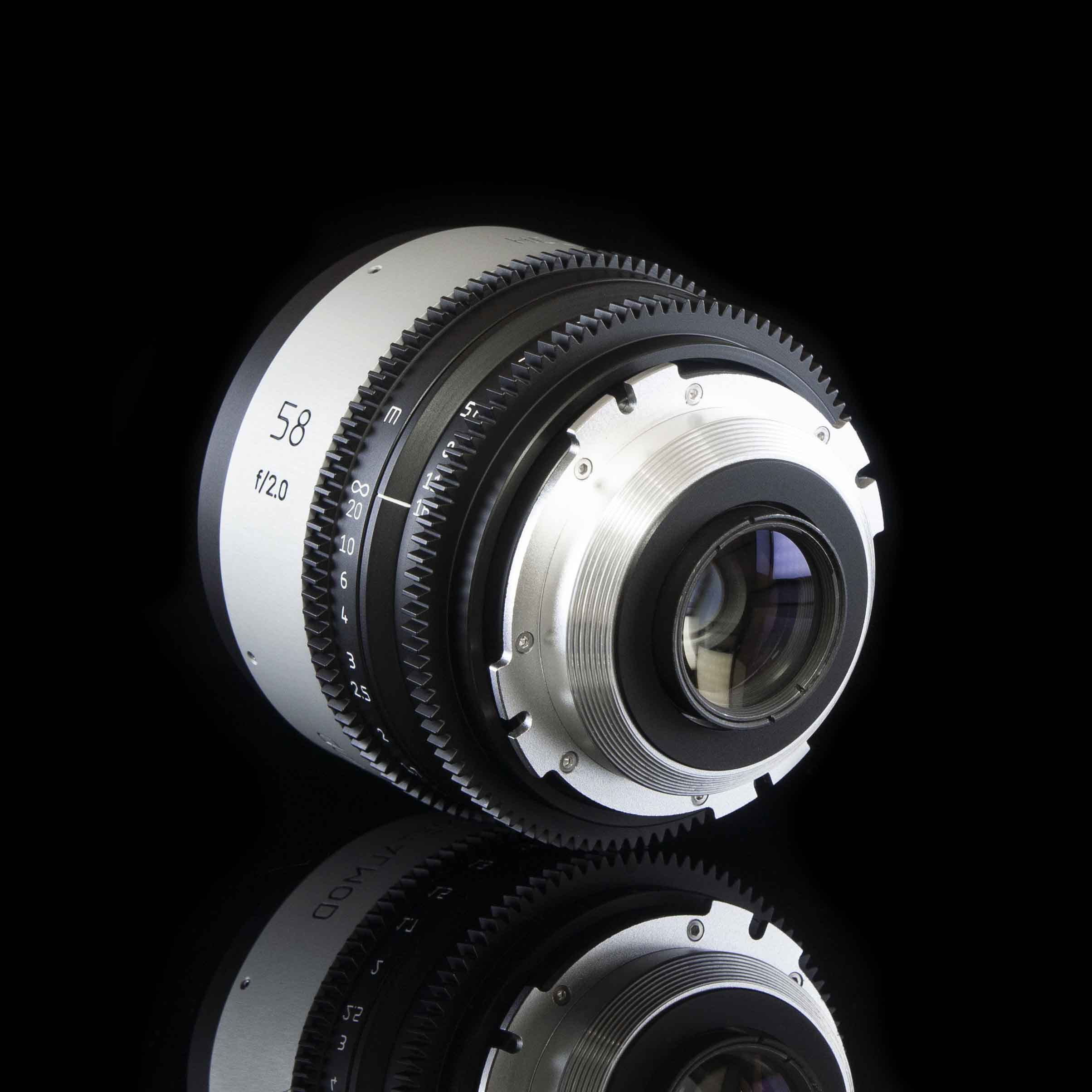

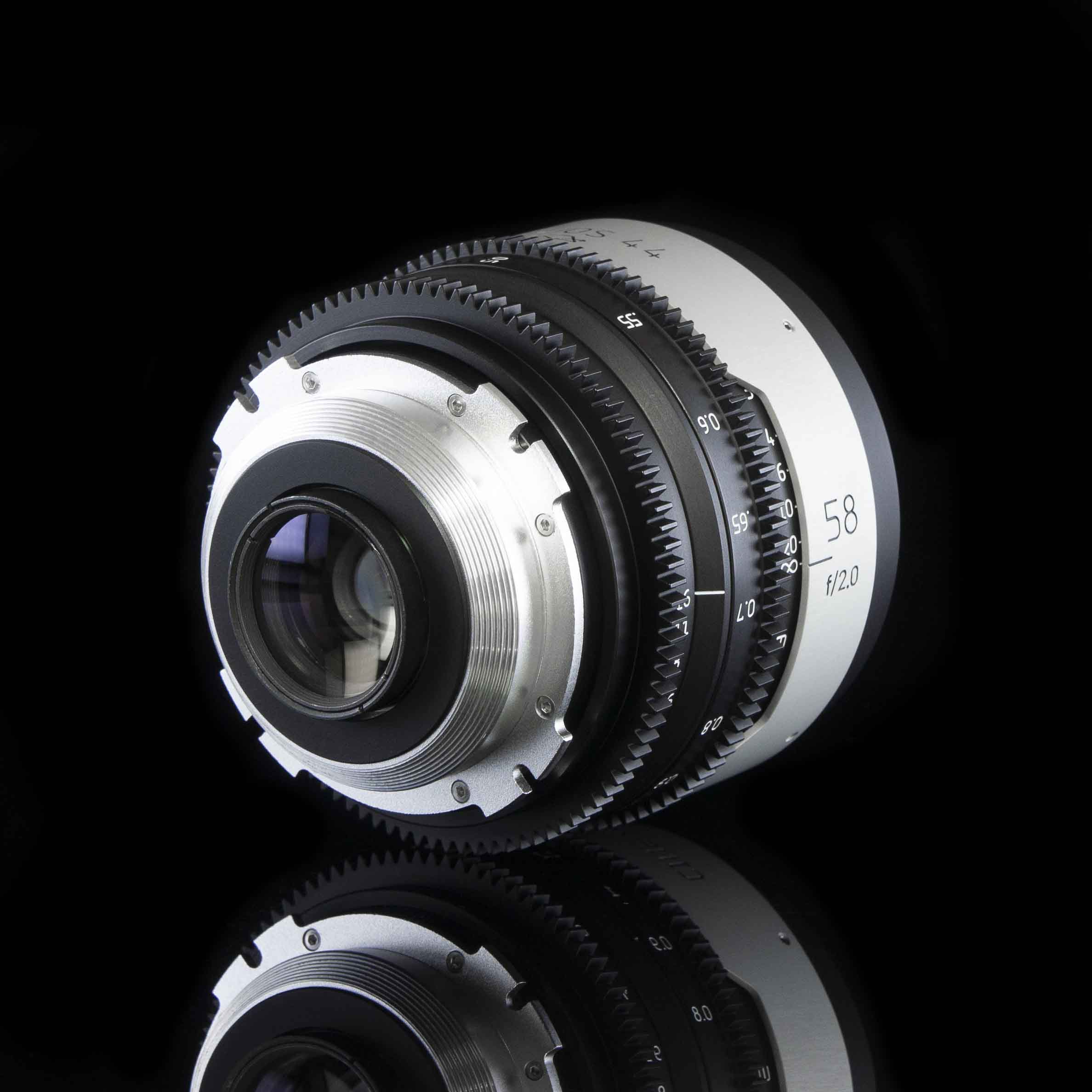

Available mounts PL
Mount type Fixed mount (not M42 adapter)
Sensor size 24×36mm (Full Frame)
Focal length 58mm
Aperture f/2
Minimum focus distance 0.5m
Aperture scale f/2 – f/16
Aperture blades 13



Questions?

Contact me via any method below.
